JOYO R-09 Vision Dual Modulation Guitar Effect Pedal
JOYO R-09 Vision Dual Modulation Guitar Effect Pedal
The JOYO R-09 Vision is a dual-channel modulation pedal that offers a comprehensive suite of 18 modulation effects, providing musicians with extensive tonal versatility. Supporting stereo input and output, each channel operates independently, allowing for intricate soundscapes and creative expression. The pedal's intuitive design and robust features make it a valuable addition to any guitarist's setup.
Key Features:
- Dual Independent Channels: Each channel features its own Speed/Rate, Control, and Depth/Mix knobs, enabling precise modulation adjustments.
- 18 Modulation Effects: Channel A includes effects such as Modulated Phaser, Chorus, Stereo Phaser, Flanger, Ring Modulator, Rotary, Tremolo, Liquid Phaser, and Tri-Chorus. Channel B offers Optical Tremolo, Small Chorus, Low-Bit, Auto-Wah, Analog Flanger, Phaser, Octave, Stutter, and Vibrato.
- Configurable Signal Routing: A 3-position toggle switch allows selection of the sequence of the two effects' output, offering series or parallel routing options.
- Tap Tempo Functionality: Independent tap tempo controls for each channel facilitate synchronization of modulation rates with your playing.
- Ambient LED Lighting: Features adjustable LED lighting modes (Sync, Always, Off) for enhanced visual feedback and stage presence.
- Durable Construction: Housed in a sturdy aluminum alloy casing, ensuring reliability and longevity.
Specifications:

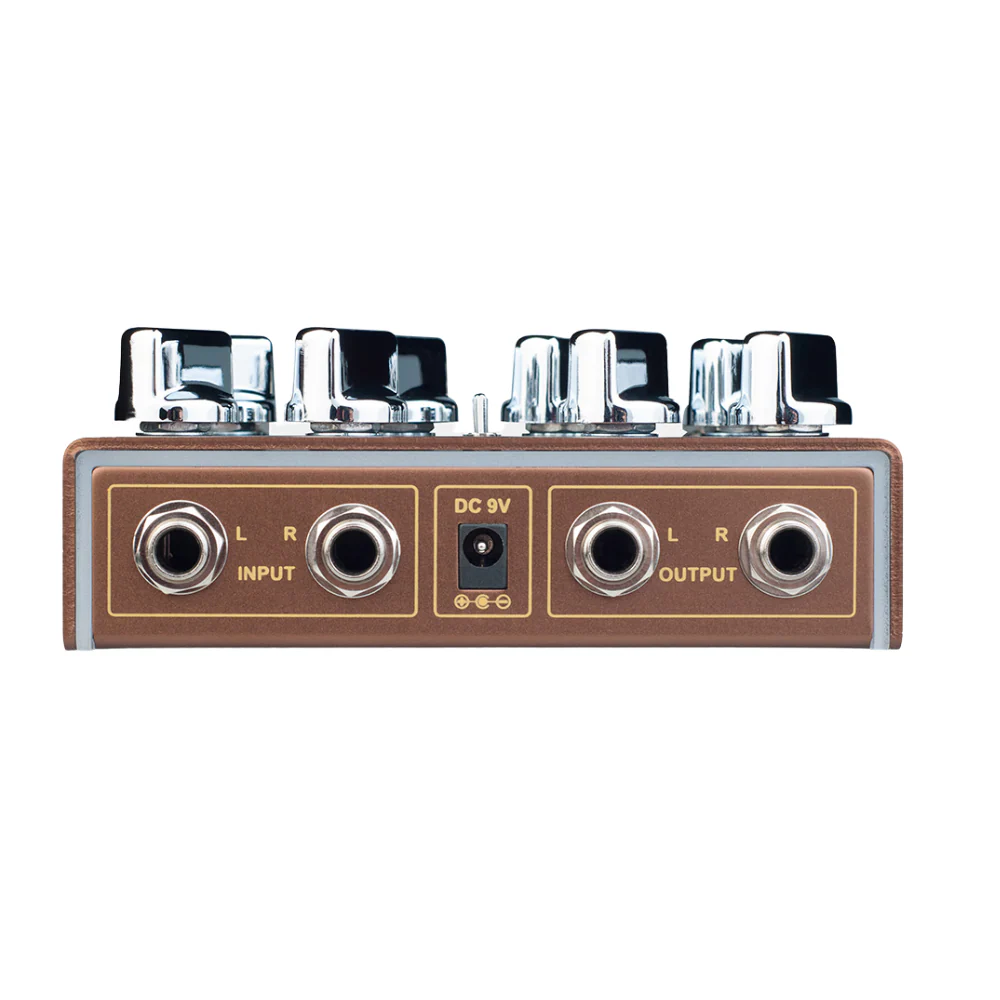

| Input | Two 1/4" mono audio interfaces (impedance 1MΩ) |
| Output | Two 1/4" mono audio interfaces (impedance 100Ω) |
| Sample Rate | 44.1 kHz |
| Sampling Accuracy | 24-bit |
| Power Supply | DC 9V (center minus) |
| Current Consumption | 170mA |
| Bypass Type | True Bypass |
| Dimensions | 130mm (L) × 110mm (W) × 50mm (H) |
| Weight | 425g |
